The Maxi Move 5 is a highly adaptable patient transfer solution built to support a wide range of mobility needs across various care environments. Engineered to enhance workflow efficiency, promote caregiver safety, and maintain patient comfort and dignity, it delivers reliable performance in everyday lifting and repositioning tasks.
 – Front View](https://cdn.shopify.com/s/files/1/0727/3883/2607/files/arjo_maxi_move_5_12.png?v=1762998325)

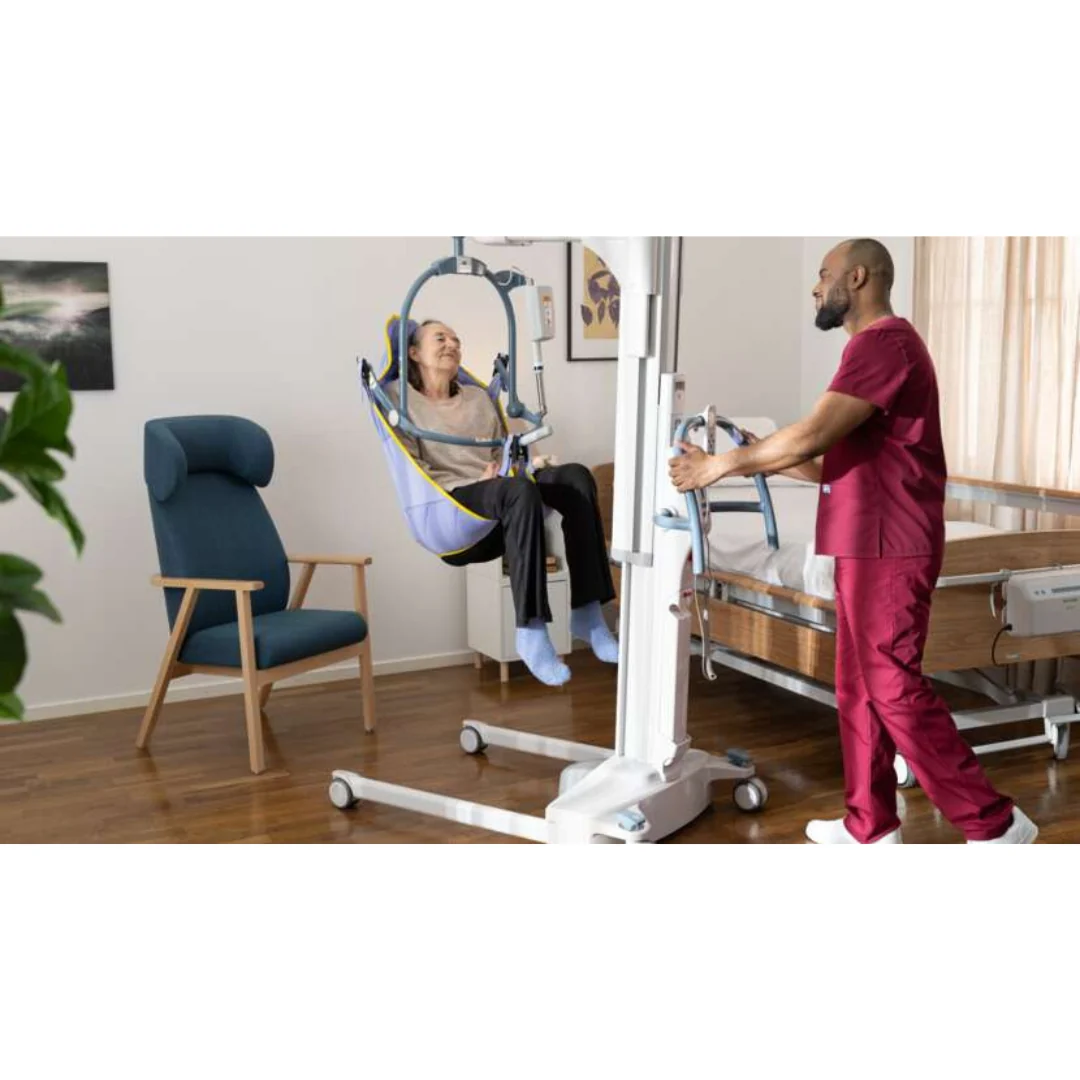

Powered by the Arjo Motion Assist™ system, Maxi Move 5 minimizes the physical effort required for maneuvering. Touch-sensitive sensors respond instantly to push, pull, and pivot movements, allowing caregivers to guide the lift smoothly—even in tight spaces. This intelligent responsiveness delivers a more intuitive, controlled, and efficient transfer experience.

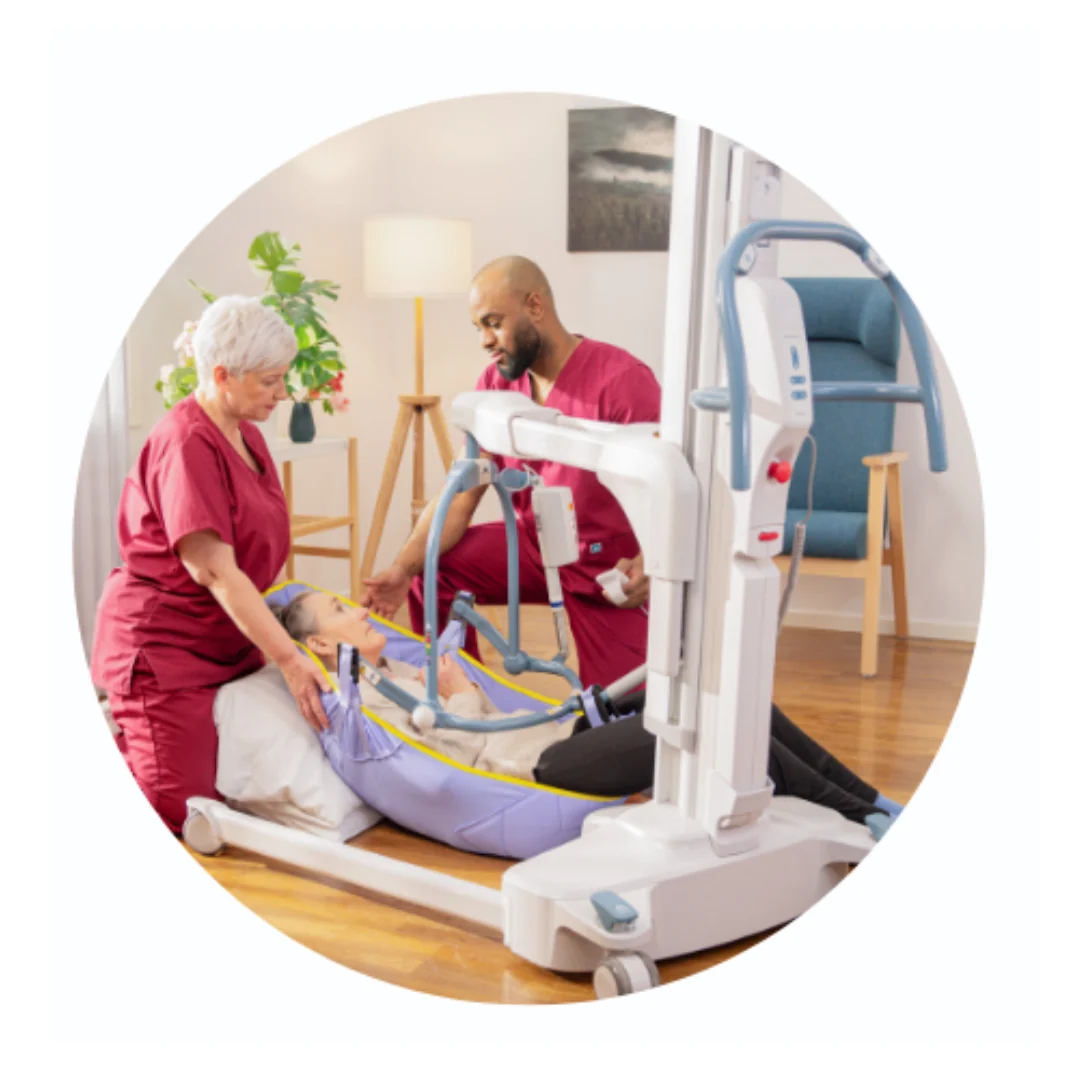

The Powered Dynamic Positioning System (PDPS) reduces repositioning effort and streamlines patient alignment. Many tasks can be completed by a single caregiver, helping improve workflow efficiency while supporting compassionate, person-centered care.

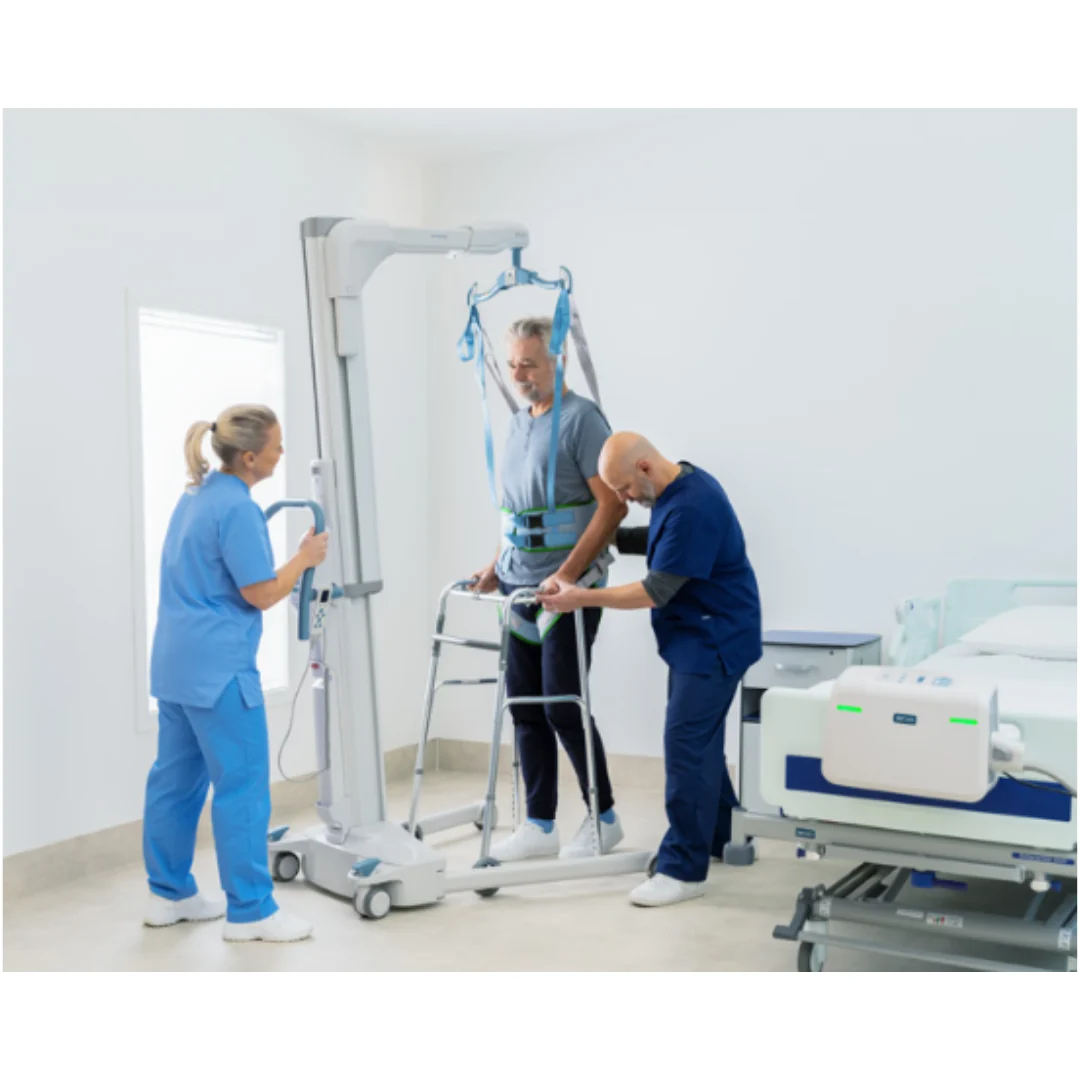

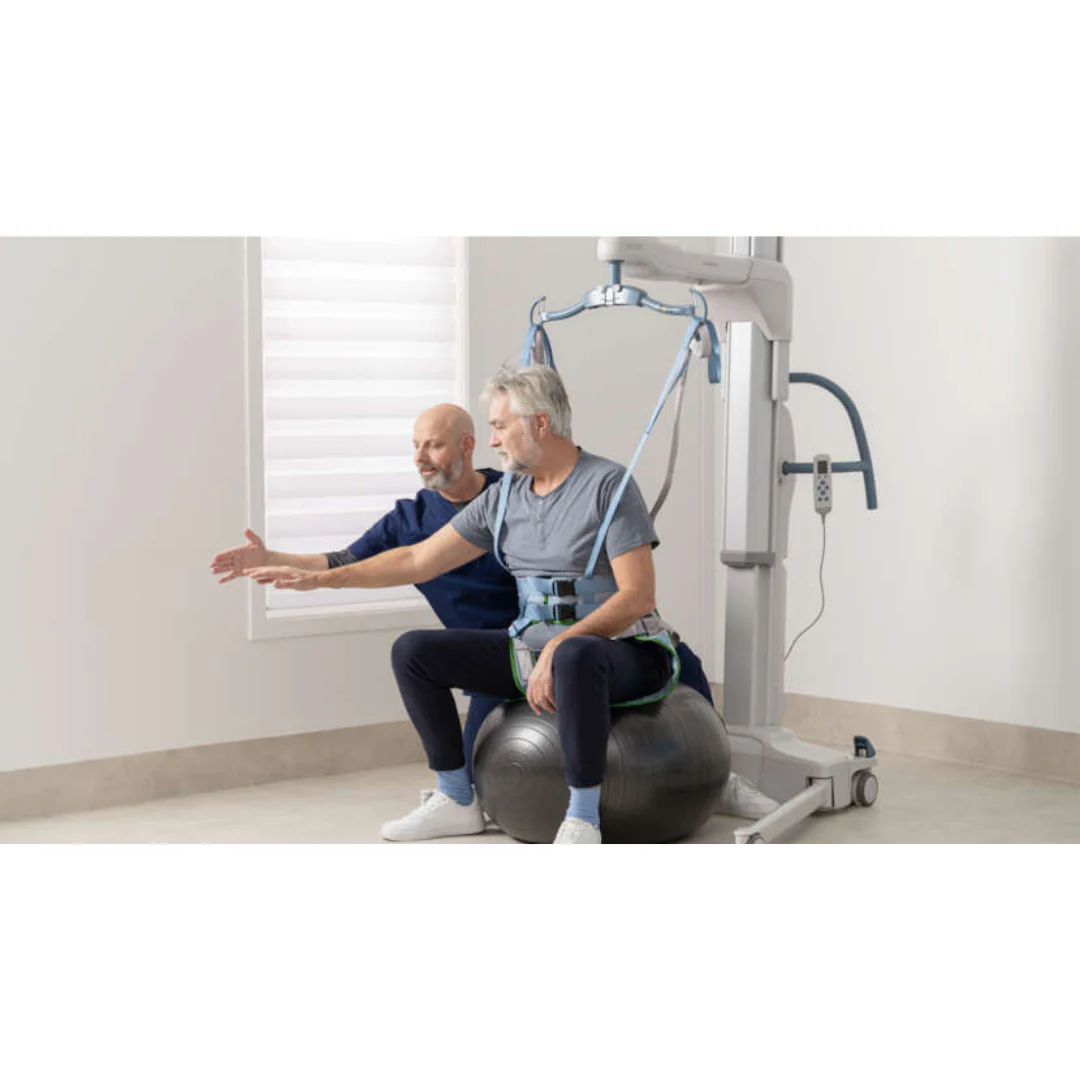

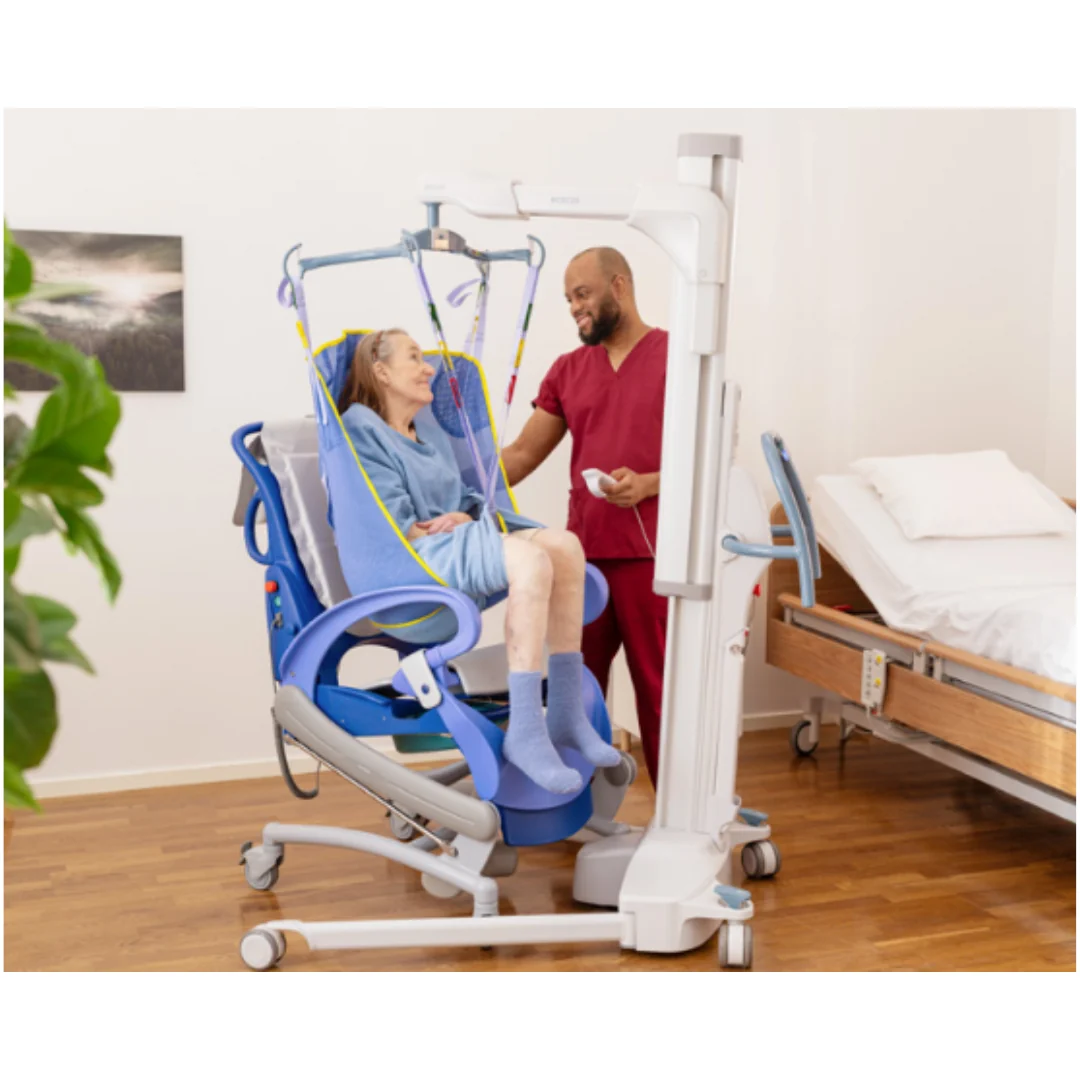

Maxi Move 5 supports a wide range of mobility and transfer needs through its extensive selection of spreader bars and slings. By enabling safe, consistent repositioning and movement, it helps reduce mobility-related risks and encourages better long-term health outcomes for patients.
Built with patients living with cognitive challenges in mind, Maxi Move 5 features rounded edges, quiet operation, gentle lift motion, and high-contrast visual cues. These thoughtful design elements promote comfort, reduce anxiety, and support dignity while simplifying caregiver tasks.
Available in two model variants with an extensive selection of compatible slings and spreader bars, Maxi Move 5 adjusts to a wide range of patient profiles and clinical environments. This flexibility allows caregivers to perform more tasks with one highly versatile lifting solution.
 – View 9 (detail)](https://cdn.shopify.com/s/files/1/0727/3883/2607/files/arjo_maxi_move_5_9.png?v=1762998227)

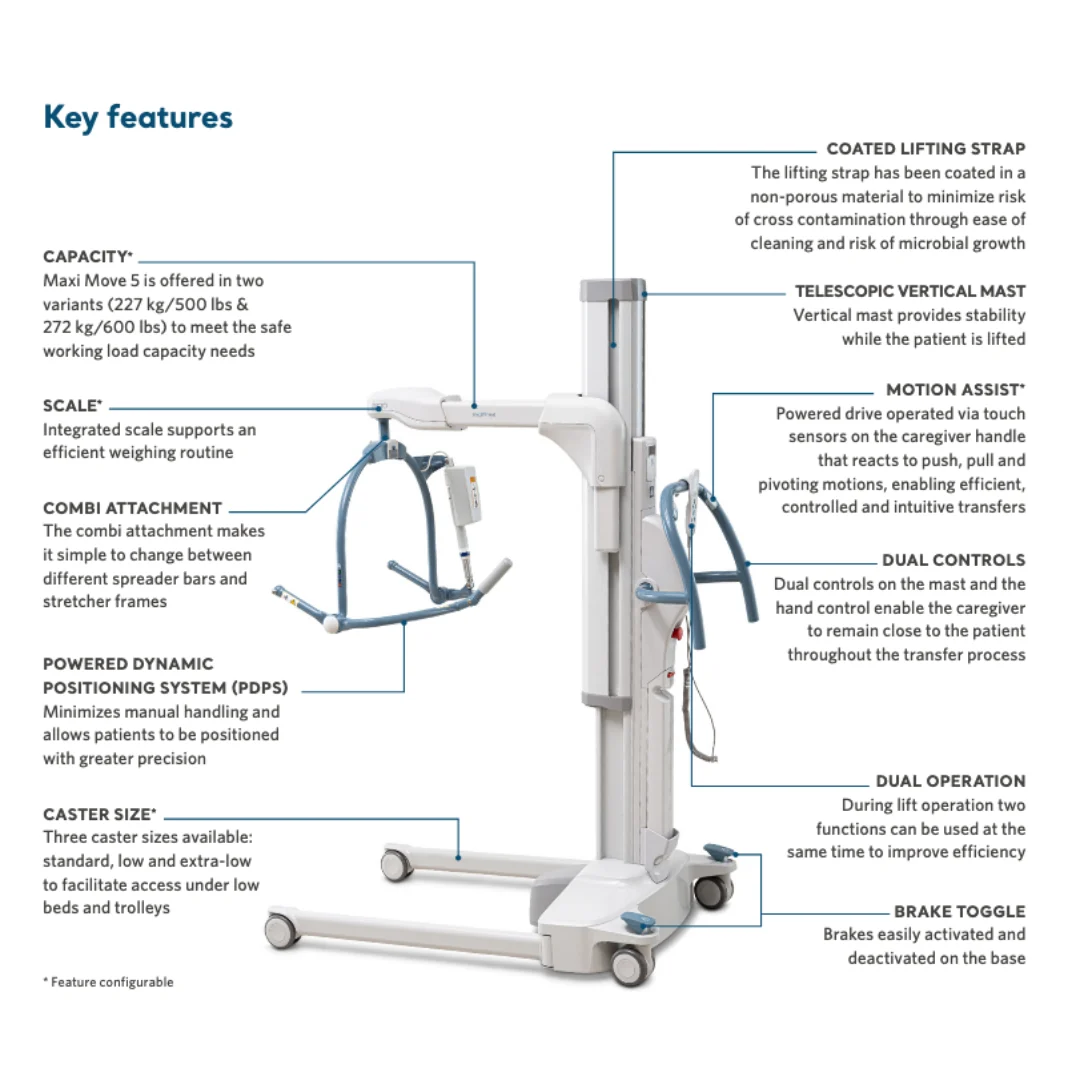

Available in two variants — 227 kg / 500 lb and 272 kg / 600 lb — to meet different patient handling and safety requirements.
Built-in weighing scale streamlines routine weight checks, improving efficiency and reducing unnecessary transfers.
The combi attachment makes switching between spreader bars and stretcher frames simple, quick, and versatile for multi-patient environments.
PDPS minimizes manual handling by allowing caregivers to position patients with greater precision, improving comfort and reducing strain.
Choose from standard, low, or extra-low castor sizes to optimize maneuverability and access under low beds, trolleys, and stretchers.
A non-porous coated lifting strap minimizes contamination risk and simplifies cleaning, helping prevent microbial growth in high-use environments.

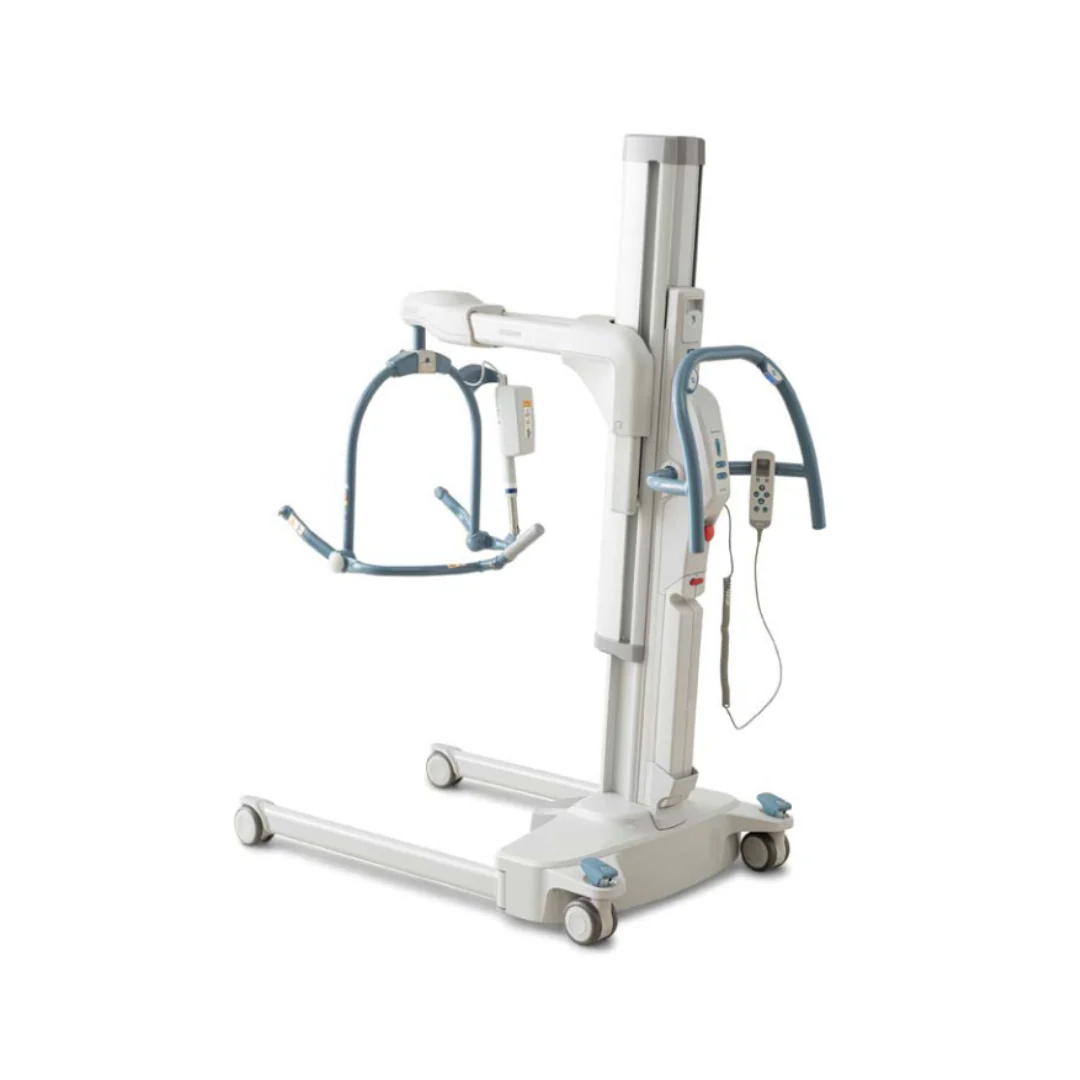

The vertical mast design provides enhanced stability during lifting, ensuring safe and controlled patient transfers.

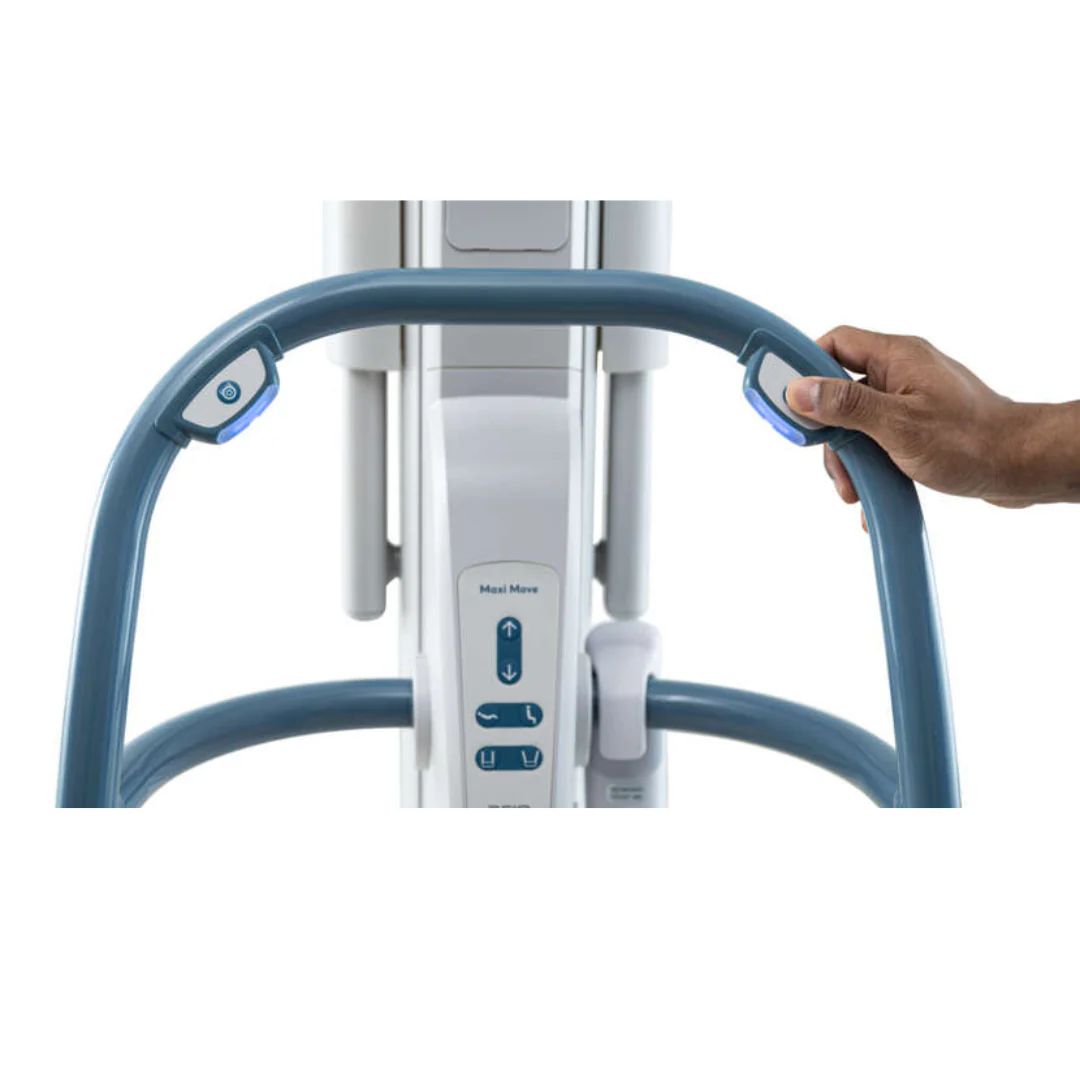

Powered drive system activated via touch-sensitive caregiver handles. Responds intelligently to push, pull, and pivot movements for efficient, controlled, and intuitive transfers.
When active, a blue indicator light illuminates on the handle. Supports patients up to 272 kg / 600 lb.
Integrated controls on both the mast and the hand control allow caregivers to stay close to the patient throughout the transfer process.
Enables the use of two lift functions simultaneously, enhancing speed and workflow efficiency during transfers.
Simple toggle-style brakes make base locking and unlocking quick and reliable for safe operation.
When Motion Assist is engaged, the system displays a blue active-status light, providing clear visual confirmation for caregivers.
*Configurable depending on chosen Maxi Move 5 model and setup.
| Specification | Standard Capacity | High Capacity |
|---|---|---|
| General Dimensions | ||
| Safe Working Load | 500 lbs | 600 lbs |
| Lifter Weight (incl. battery & spreader bar) | 162.2 lbs | 166.7 lbs |
| Max Lifting Height | 60 3/4 in | 60 3/4 in |
| Min Lifting Height | 4 1/8 in | 4 1/8 in |
| Min Storage Height | 53 3/4 in | 53 3/4 in |
| Lifting Interval | 56 5/8 in | 56 5/8 in |
| Max Reach | 24 3/16 in | 24 3/16 in |
| Lifter Length | 50 3/8 in | 52 1/8 in |
| External Width (Legs Closed) | 26 3/16 in | 29 1/2 in |
| External Width (Legs Open) | 43 3/8 in | 48 in |
| Internal Width (Legs Closed) | 20 13/16 in | 24 3/16 in |
| Internal Width (Legs Open) | 38 1/16 in | 42 5/8 in |
| Minimum Width | 26 5/16 in | 29 11/16 in |
| Leg Clearance | 4 7/16 in (std) | 4 7/16 in (std) |
| Chassis Clearance | 15/16 in | 15/16 in |
| Turning Diameter | 48 5/16 in | 51 9/16 in |
| Lifting Speed | 41–45 mm/s | 41–45 mm/s |
| Electrical & Safety | ||
| Lifter Protection Class | IP24 | IP24 |
| Hand Control Protection Class | IPX7 | IPX7 |
| Battery | 24V, 4 Ah | 24V, 4 Ah |
| Battery Charge Indicator | Yes | Yes |
| Cycle Counter | Yes | Yes |
| Overload Indicator | Yes | Yes |
| Automatic Obstacle Safety Cut-Out | Yes | Yes |
| Emergency Stop & Override | Yes | Yes |
| Accessories & Configurations | ||
| Available Spreader Bars | 2-Point Loop, Medium Loop, 4-Point Loop, Powered DPS, Stretcher Frame | |
| Stretcher Solutions | Soft, Strap, Scoop | |
| Wall-Mounted Battery Charger | Available | |
| Plastic Leg Covers | Available | |
| Motion Assist | Optional | |
| Scale Integration | Optional | |
Download The Quick Reference Guide
